package cooler for Dynapac paver,side by side CAC/OC/RAD with fan

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Xinsheng
Model Number:
B910283
Supply Ability
Supply Ability:
300 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
fumigation-free plywood cases
Port
shanghai
Lead Time :
30days-40days
Product Description

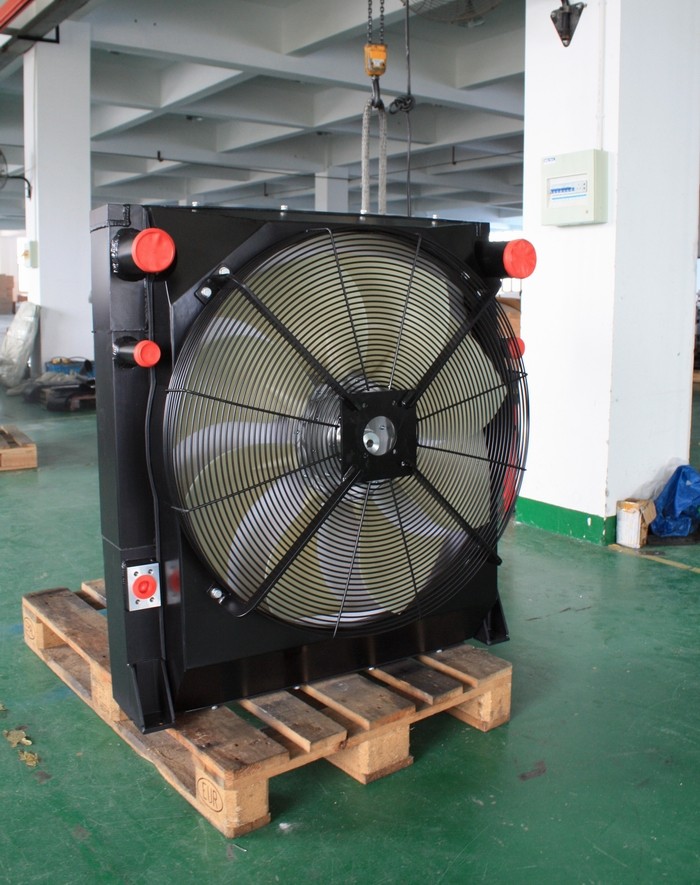

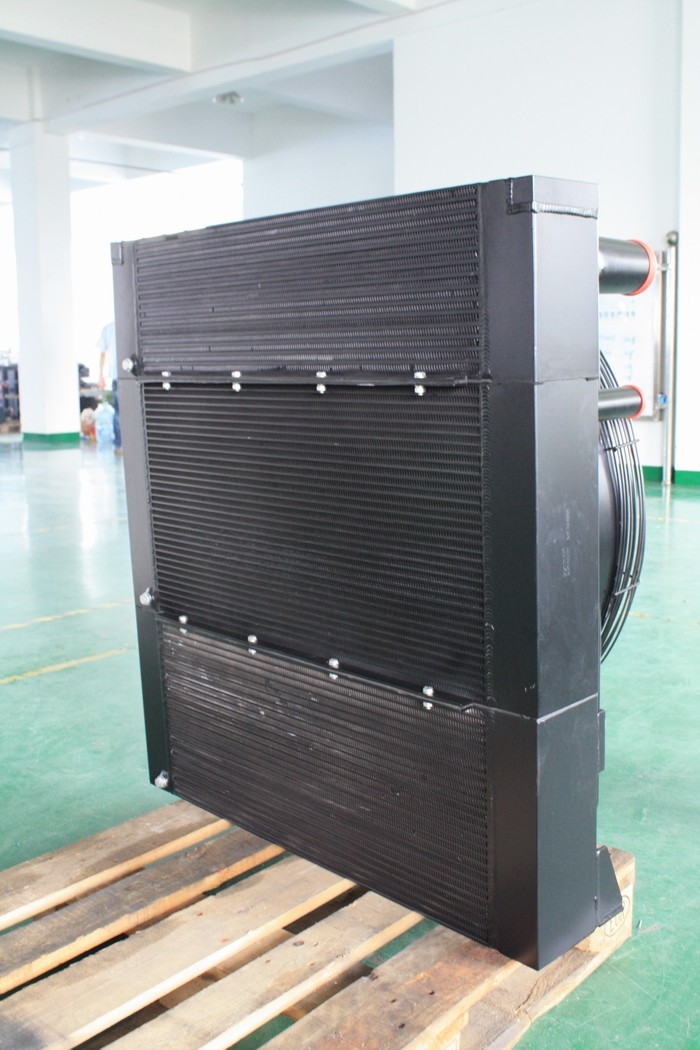

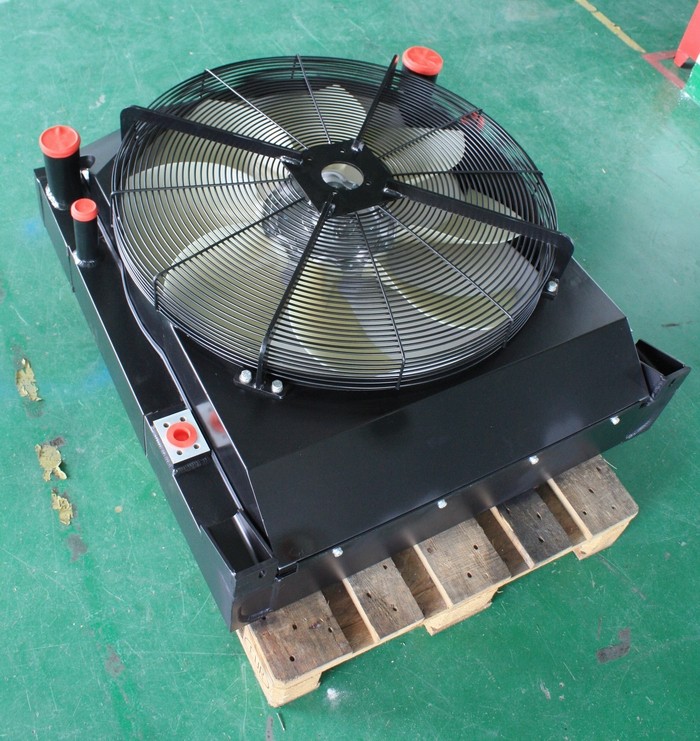

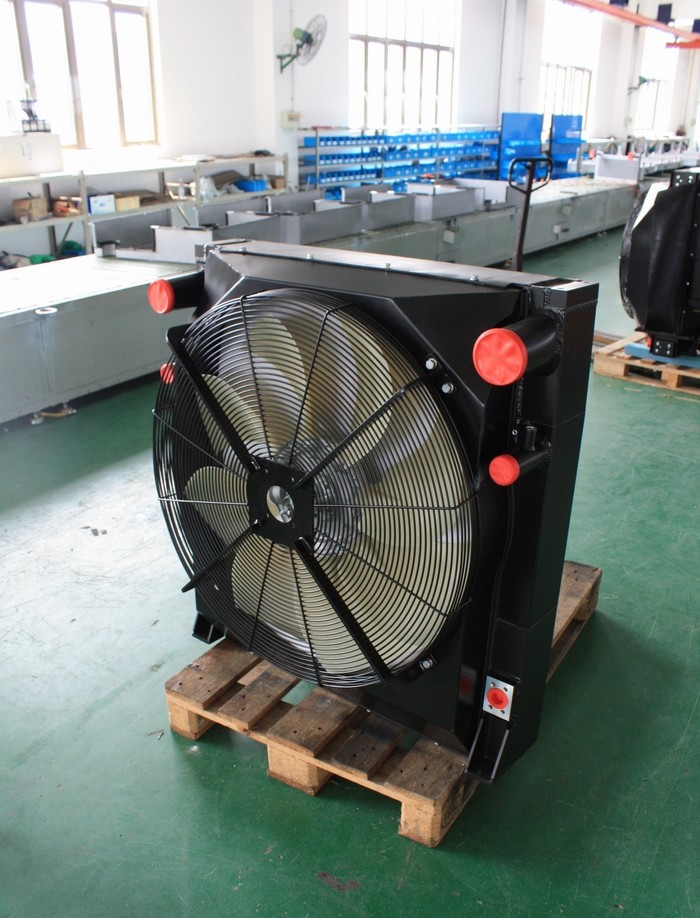

Package cooler for Dynapac Paver,side by side CAC/OC/RAD with fan



The cooler is used to cool down oil /air/water in general using air through forced ventilation on machines that operate continuously in severe work conditions.


Technical Specification
• Core: aluminium bar and plate structure

• Application:Paver

• Hot medium:oil /water/air

• Overal Size:1049mm *960mm*382mm

• Cooler Package:cooler,fan,sheet metal.All are supplied by Xinsheng.



MediumOilCompressed AirWater-GlycolCooling Air
Working Power50KW38KW125KW
Flow192l/min15m3/min191l/min22000m3/h
Inlet Temperature80℃181℃107℃45℃
Outlet Temperature71℃52℃96℃
Working Pressure10bar3bar2bar
Pressure Drop<1bar<0.1bar<0.1bar<450Pa
Fan Speed1800rpm
Noise Level<90dB(A)

























Company Information

--COMPANY SHOW

         Wuxi Xinsheng Heat Exchanger Co., Ltd is established in July, 2 0 0 1 and located in Wuxi City near Shanghai, covering the building area of 26000 square meter. We are an experienced manufacturer of aluminum plate–bar and tube-fin heat exchangers. Until now, we totally have 33fin punching machines, 6 vacuum brazing furnaces and 1 noclock line, and the potential production capacity reaches 16, 5 0 0 pcs / month. Since 2 0 0 3, we has acquired the import & export certificate, I S O 9 0 0 1 certificate, CE certificate, T S 1 6 9 4 9 certification system, I S O 1 4 0 0 0 and O H S A S 1 8 0 01.

         Based on our large-scale testing background, we can fully test the product performance before delivery. These include thermal balance test, vibration performance and lifetime tests involving pressure impulse testing, and surface treatment tests of salt spray testing. All are conducted in accordance with our strict quality standards.

         Xinsheng focuses on supplying the cooling solution to application of Construction machinery, Wind Power, Industry and Automotive.  We are keeping long-term and good cooperation with Atlas Copco, Liebherr,Airman, Compair, GE, Sinoval, Hydac, Dynapac, Volvo, Zoomlion, Liugong, Lingong, Yuchai, Strong and Kobelco.

         We are glad to work together with you and finally bring you the satisfied service.
